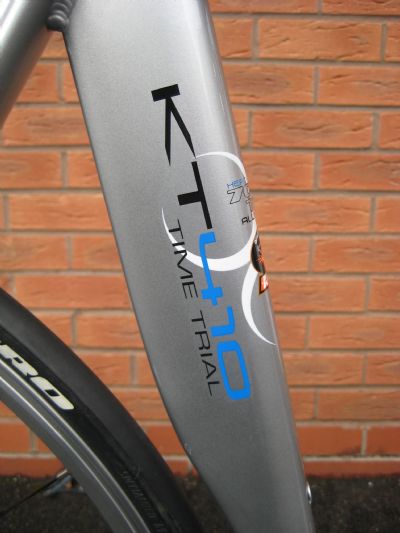

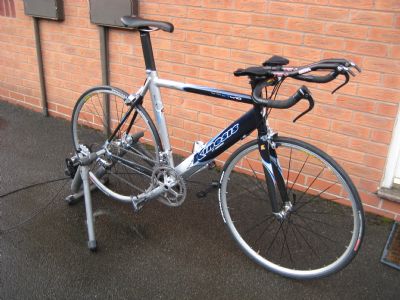

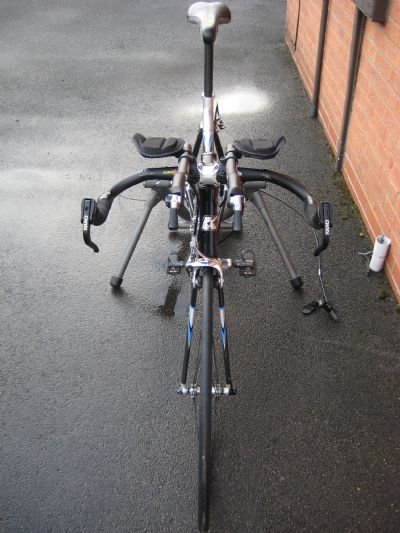

TRI BIKE BUILD!I have desided to build a Triathlon / Time Trial / TT bike from scratch! Reason behind this is simple, can not afford a new one and the cheap tri bikes and not brilliant and you have to pay over a £1000 before you find the one you want with the right spec / equipment on. What I will do is buy all the parts individually over a few months spreading the cost from all differnet websites (like wiggle, e-bay, evans etc etc.) - hopefully i will be able to buy good quality products cheap and maybe come accross the odd bargain here and there! March 30th 2010 - Its finished!!! I have now finished my triathlon bike! It took just over 2 months to find all the components that i wanted and have them delivered. The actual build of the bike did not take that long and I am very happy with the outcome. See pictures below for the finished article. The full specification of the bike is as follows :- Frame, Forks & Seat Post - Kinesis KT410 TT series frame, carbon forks and carbon rear triangle.
Stem – FSA OS150 LX Stem - Alloy 90mm reach, 31.8mm size & 1 1/8" Fork Fit

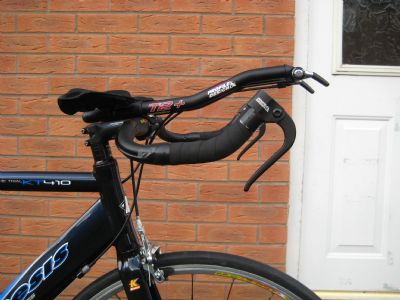

Handlebars – Profile Airwing OS Aero Bars (31.8mm Stem fitment)
Aero Bars – Profile T2+ Aero Bars
Seat – Quintana Roo Time Trial Saddle

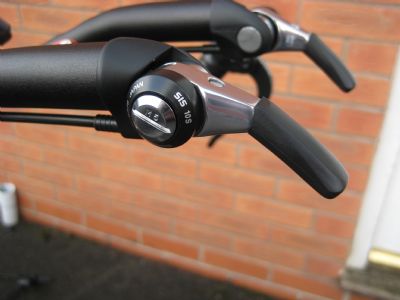

Bar End Shifters – Dure Ace 10 Speed Bar End Shifters

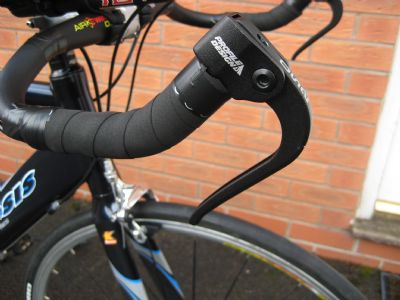

Brake Levers – Profile Design - QS2 Quick Stop 2 Brake Levers

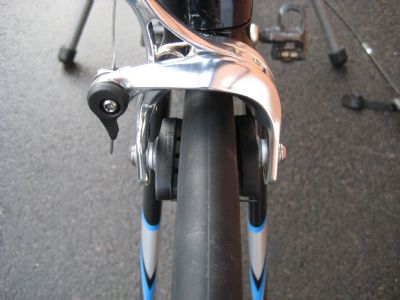

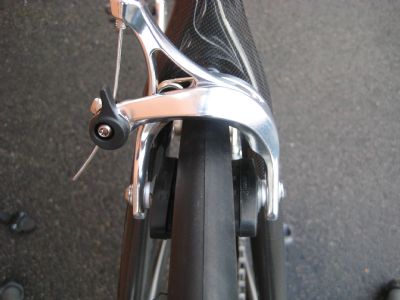

Brake Calipers – Tektro Brake calipers
Wheels & Tyres – Mavic CXP22 with Specialized Pro tyres, size 700c
Front Crank – FSA Gossemer Crank Double 53/39T
Front Derailluer – Shimano 105 Front Mech (Band on)
Rear Derailluer – Shimano 105 Rear Derailleur 9 / 10 Speed RD-5600
Chain – Shimano 105 5600 Chain 10 Speed Road Bike Chain
Rear Cassette – Shimano 105 Cassette 10 Speed 5600 12-25T
Pedals – LOOK Keo Classics
Stem Spacers - Ritchey Pack of 4 - 2 x 5mm & 2 x 10mm
Front & Rear Wheel Skewers – Shimano QR Wheel Skewers (Pair)
Gear cables + sleeving (Inner and outer) - Shimano Compatible Gear Cable Set, Inners & Outers.
|    |
|
 | ||
