Planets

URANUS December 2019: Uranus is in retrograde motion (E to W) until 10th January 2020. Close to maximum visual magnitude (5.7) the planet is readily identifiable with the aid of small binoculars. (A 5x40 binocular will have a field diameter in the region of 8° and should so objects to magnitude 10.)  The large asteroid Vista (mag. 7.1) appears some 12° to the east of Uranus throughout the month.

2019 Dec. 15, looking due southat 20h 30m UT

2019 Dec. 15, showing Uranus (Ur) and Vesta at 20h 30m UT

NEPTUNE and phi Aquari: 2019 Sep. 07.

Neptune and phi Aquari imaged 21h 38m UT. (Separation: 136 arc-seconds. Neptune mag. 7.8; limiting star mag. 10.5.) Nikkor 400mm f/3.5 with 2x converter: exposure 2.0 sec. D300 SLR ISO 2500. EQ3 mount, drive at sidereal rate.

NEPTUNE 2019 Sep. 06. 22h 07m UT

Neptune in conjunction with the red, super-giant star phi Aquari (mag. 4.2).

Minimum separation took place approximately 10 hours earlier at 12h 45m UT on the 6th when the separation  between Neptune and the star was 13.4 arc seconds.

The evening and early night of the 6th as observed from Rousay was not promising but cloud started to break up around 21h UT. By 21h 25m we were able to image the region of sky in Aquarius with static camera using lenses up to 135mm fl. Even exposures as low 4 seconds gave elongated stellar images and it was decided to set up an EQ3 mounting with camera and lenses up to 300mm fl.

Cloud came and went but by 23h the sky was generally overcast. In the interim we were able to secure a number of excellent images particularly with a 300mm f/4.5 Nikkor lens and D300 SLR employing exposures from 1 sec. to 6 sec

Neptune and phi Aquari imaged 22h 07m UT. (Separation: 41.5 arc-seconds. Neptune mag. 7.8; limiting star mag. 11.5.) Nikkor 300mm f/4.5 exposure 2.5 sec. D300 SLR ISO 2500. EQ3 mount, drive at sidereal rate.



NEPTUNE 2019 Sep. 02. 02 21h 36m UT

Nikkor 500mm f/4 D300 SLR Exp. 6 sec. EQ3 equatorial at sidereal rate.

URANUS 2019. Location charts for October:

Location chart for Uranus 2019 October 01. Wide field. Uranus at centre marked Ur.

Location chart for Uranus 2019 October 01 to November 01. Field 25° x 20° approx.

NEPTUNE 2019.

Neptune 2019 Aug 09 h01 m17 UT A fine early morning sky:

50mm f/2.8 Exp. 5 sec D300 ISO 2500 (static camera) limiting mag. 10 in field. The planet may be located between the two stright lines. The bright star to the west (right) of the planet is phi Aquari vis. mag. 4.22 spec. type: M2III. A field from SkyMap11 is shown to the right for scale pirposes.

Locating Planet Neptune in the Night Sky.

Now that Pluto has been relegated to the title of dwarf planet, Neptune is the farthest planet in orbit about the Sun. At its closest to Earth this year (opposition date 2019 Sep. 10) Neptune will be at a distance from us of 28.9277837 AU (4328 million km). Its apparent visual magnitude varies little from the figure of 7.8 which means a binocular or small telescope of 40mm aperture or more will be required to observe the planet in a dark sky.

Around opposition Neptune’s apparent motion against the stellar background will be approximately 1.6 arc minutes (a little above 1/20th  of the Moon’s apparent diameter) in 24 hours.

There will be a good opportunity to locate Neptune between the 1st and 11th September when the planet appears to pass (east to west) of the red super-giant star phi Aqua (ap. mag. 4.22 type: M2III).

The sky looking a little west of due south 00h 30m UT on the morning September 6th 2019. It will be seen that Neptune appears almost on a line between the forward pair of stars in the Square of Pegasus and the bright, 1st magnitude star Foamalhaut (alpha Pisces Austrinus) close to the southern horizon.

A high resolution, small field diagram showing the path of Neptune from September 1st to October 1st 2019, both for 00h 30m UT.



The Natural Satellites of the Solar System



Introduction



A satellite in general terms may be defined as a companion to a controlling, more influential body.



In astronomy, before the advent of modern space technology, the term satellite was applied specifically to a smaller attendant body orbiting a larger body, as in the case of the Earth and the Moon of which the Moon is the satellite to the Earth. It should be noted that "Moon" is given a capital letter since it is a proper noun.



The term moon has long been used as an alternative to the word satellite when referring to natural satellites in the Solar System. Many reference sources do in fact define the words moon and natural satellite as synonymous. This practice is perhaps more admissible at the present time since it distinguishes between natural satellites (moons) and artificial satellites or probes orbiting bodies in the Solar System.



Apart from reference to lunar, implying to do with the Earth's natural satellite—the Moon—our satellite has no other name recognised within scientific cultures. However, the author prefers the words natural satellite to moon when referring to natural satellites in the Solar System.



Now that Pluto has been demoted to the category of a dwarf planet (again the word dwarf we find somewhat odd in scientific language), the number of planets within the Solar System having satellites is six. The two inferior planets (those orbiting the Sun within the Earth's orbit) Mercury and Venus would appear not to have satellites. (One cannot entirely rule out some very small object or objects as yet undetected.)



Whereas the Earth and Mars have one and two satellites respectively, planets in the outer regions of the Solar System (excluding Pluto, of course) all have a number of satellites; new ones are being discovered all the time though, this trend has probably slowed in recent years.



EARTH



The Moon has the largest size ratio to its primary (the Earth) of all natural satellites now that Pluto has been relegated to the designation of "dwarf" planet.



Pluto diameter 2390 km., Charon (satellite) 1186 km., moavm* 17.3.



Earth diameter 12756 km 12714 km equatorial/polar diameters respectively.



Moon diameter 3473 km 3472 km equatorial/polar diameters respectively. Apparent visual magnitude of an average full moon –12.7.



MARS



The two satellites attending Mars are very small and irregular in shape, thus:



Phobos            27x22x16 km., moavm 11.3

Deimos            15x12x10 km., moavm 12.4



Mars diameter 6794 km 6750 km equatorial/polar diameters respectively.



ASTEROIDS



Before moving on to Jupiter, the largest of the planets within the Solar System, we should mention the main asteroid belt lying between the orbits of Mars and Jupiter.



In 1772, the German astronomer Johann Bode (19 January 1747 – 23 November 1826) formulated an arithmetical relationship for the distances of the planets from the Sun  that became known as the Bode-Titius Law, Titius having suggested the connection some time earlier. (Johann Daniel Titius of Wittenberg, January 2, 1729 – December 11, 1796.)



The “law” suggested that there should be a planet lying in an orbit between the orbits of Mars and Jupiter. This in the late eighteenth century led to a determined effort to search for the unknown planet that resulted in the fortuitous discovery of Ceres by Piazzi in 1801 This, was the first of the now well known quartet of asteroids Ceres, Juno (1804), Pallas (1802) and Vesta (1807). Although the largest of the quartet Ceres (dia 787 km) is by no means the brightest, that distinction falling to Vesta (dia. 400 km) which at times may become a naked-eye object at visual magnitude 5.7. It was not until 1845 that a fifth asteroid (Astraea) was discovered by Hencke. Since then, and with the advent of photography, many thousands of asteroids have been observed.



The important feature to note is that the orbits of asteroids tend to have eccentricities greater than that of the planets, excepting Mercury. This means their apparent magnitude at opposition will vary considerably well demonstrated in the case of Astraea.



View from Astraea



Passing by at Christmas this year,

nineteen-ninety-four, at visual magnitude nine-point-five,

I tell you what I see across the Earth:

wars and famine, a ghastly pall, a raging light,

traffic jams and endless plastic.



(From WAR, JCV ISBN: 1-902582-49-7)



JUPITER



Jupiter is the most interesting planet telescopically, both the planet itself and for its four Galilean satellites. (So named after their discoverer on January 7th 1610, Galileo, during his early astronomical investigations with the optical telescope.)



As most readers will know, apart from very rare occasions when Mars is at its closest to Earth, Jupiter is the next brightest planet to Venus as seen from Earth. At close oppositions Jupiter will reach an apparent visual magnitude of –2.9, when its largest satellite, Ganymede (dia. 5262km) may have an apparent visual magnitude of 4.6, marginally fainter than that of Taygeta, the 6th brightest star in the Pleiades open cluster.



In fact all four of Jupiter’s largest satellites would be visible to the unaided eye were it not for the proximity of the brilliant planet itself. Ganymede is in fact larger than planet Mercury (diameter 4879 km).



SATURN



As may be seen from the table above, Saturn has nothing to equal Jupiter in the number of large satellites. Titan is exceptional and is indeed the second largest satellite in the Solar System and, again, larger than planet Mercury. The trio Tehtys, Dione and Rhea are of comparable size to one another but much smaller than Titan.



By contrast with the four Galilean satellites of Jupiter, Titan is a faint telescopic object but by no means difficult even in apertures as small as 75mm. Rhea too, despite being approximately 1/3 as bright as Titan, is also observable in modest instruments.



URANUS



It will be seen from the table that the four brightest satellites of Uranus are a good deal fainter than anything we have considered so far.



They require a telescope of at least 180mm aperture to be seen and are best imaged with a focal length of 800mm or more. We frequently record four and sometimes five satellites with a Nikkor 800mm f/5.6 using exposures of between 8 and 12 seconds. On occasions (depending upon seeing conditions and satellite positions in relation to Uranus itself) smaller instruments may be used to image at least three of Uranus’s satellites.



NEPTUNE



Triton is the only satellite capable of being imaged using focal lengths of 600mm. Again, a Nikkor 800mm f/5.6 is quite adequate for the purpose with exposures in the region 15 to 20 seconds. We have also achieved modest results with a 150mm aperture f/5 achromat.



Observing the planets for satellites.



At the time of writing, only Jupiter is still readily accessible to northern hemisphere observers as it moves through constellation Leo on track for Virgo in 2016.



Saturn is now well down in the southern celestial hemisphere in constellation Scorpius and will not return to the northern celestial hemisphere until 2025, a year in which it will be in close alignment with Neptune.



Uranus is reasonably well placed for observation during autumn and early winter being some 6° north of the celestial equator in constellation Pisces and improving for northern observers as the planet moves towards constellation Aries. We give the path of Uranus in  chart. 2 (below) for those wishing to take up the challenge of imaging some of Uranus’s satellites in the coming weeks up to December 14 2015. This displays stars to magnitude 10 and may then be referenced to the small scale Chart !, using the two stars zeta and epsilon Piscium shown in both.  NOTE: Uranus is in retrgrade motion for this duration.



Neptune likewise is steadily increasing in altitude for northern observers but is currently quite low down of an autumn evening in constellation Aquarius.









2014 September10. Neptune with satellite Triton.

The largest and brightest natural satellite to planet Neptune, Triton, was imaged close to one of its greatest elongations (16.7") at 23h 23m UT. Neptune apparent visual magnitude 7.8. Triton apparent visual magnitude 13.5. The bright star in the field (dia. 28' approx.) is TYC 5812-1448-1, visual magnitude 6.89, spectral type: G0. Limiting mag. 15.5. A 22.3sec. exposure, Nikkor 800mm f/5.6, D300 SLR ISO 2500. (Left click to enlarge.)

Note the planet was approaching the southern meridian at the time of this observation.

Data for Neptune at time of observation:

Right ascension: 22h 40m 234s

Declination: -9° 16' 27"

Constellation: Aquarius

Altitude: 21° 35.6'

Azimuth: 177° 17'

Hour angle: 23h 49m 46s

Rise: 18h 33.2m

Transit: 23h 33.7m

Distance (from  Earth): 28.9697951 AU (4334 million km)

Horizontal parallax: 0.30"





2014 July 01. Jupiter and Venus a little under 3 hours following conjunction in longitude, imaged 2015 July 01 at 10h 39m UT.

100mm f./9 apochromatic doublet at power 45x; Canon IXUS 310HS, 1000 sec. exposure ISO 200. The angular separation for the two planets (centre to centre) was 22' 00". The sky gave poor transparency due to haze as well as indifferent seeing quality. Jupiter scarcely discernable (shown “highlighted” between two white lines).



Data at time of observation for Jupiter:



Right ascension: 9h 37m 13.82s

Declination: +15° 6' 3.3"

Constellation: Leo

Altitude: 24° 30' 2"

Azimuth: 101° 44' 22"



Magnitude: -1.8

Phase: 0.996

Phase angle: 7.3°

Elongation: 42.4°

Equatorial diameter: 32.37"

Polar diameter: 30.28"



Data at time of observation for Venus:



Right ascension: 9h 36m 58.89s

Declination: +14° 44' 20.3"

Constellation: Leo

Altitude: 24° 13' 22"

Azimuth: 102° 0' 8"



Magnitude: -4.4

Phase: 0.336

Phase angle: 109.2°

Elongation: 42.4°

Diameter: 32.53"



Closest approach at conjunction in longitude took place at 2015 Jul 01at 07h 50m when the planets were separated by 20' 41".





2014 June 30. Jupiter and Venus approaching conjunction.

Jupiter and Venus approaching conjunction, imaged 2015 June 30 at 18h 25m UT. 100mm f./9 apochromatic doublet at power 45x; Canon IXUS 310HS, 1000 sec. exposure ISO 200. The angular separation for the two planets was 23' 34". (Left click to enlarge.) Jupiter top left.



Note that the planets subtend almost identical apparent angular diameters at around 32".



Data at time of observation for Jupiter:



Right ascension: 9h 36m 44.19s

Declination: +15° 8' 30.4"

Constellation: Leo

Altitude: 33° 56' 11"

Azimuth: 239° 14' 16"



Magnitude: -1.8

Phase: 0.996

Phase angle: 7.4°

Elongation: 42.9°

Equatorial diameter: 32.41"

Polar diameter: 30.31"



Data at time of observation for Venus:



Right ascension: 9h 35m 17.05s

Declination: +14° 57' 56.5"

Constellation: Leo

Altitude: 33° 37' 11"

Azimuth: 239° 30' 57"



Magnitude: -4.4

Phase: 0.341

Phase angle: 108.5°

Elongation: 42.6°

Diameter: 32.21"

Today’s relatively close conjunction between planets Jupiter and Venus raises the interesting question as to whether a conjunction could be so close as to find Venus actually transiting the disc of Jupiter. Such a close encounter will take place in 2065 Nov 22 12:43   0° 00' 14" when Venus will appear to transit the lower half of Jupiter’s disc. At this event the two planets will have an elongation from the Sun of only 7.9° making for a very difficult observation from ground-based telescopes.



A more interesting conjunction takes place in 2123, September 14 (Dia.1). On this occasion the planets will have an elongation from the Sun of 16.3°, making the observation quite feasible with telescopes of 150 mm aperture having the object glass shielded from direct sunlight.

Dia. 1. Venus at first contact 2123  Sep. 14 at 15h:15.7m UT.



Data for Jupiter:



Magnitude: -1.7

Phase: 0.999 (99.9%)

Phase angle: 3.0°

Elongation: 16.3°

Equatorial diameter: 30.70"

Polar diameter: 28.71"



Data for Venus:



Magnitude: -3.9

Phase: 0.960 (96%)

Phase angle: 23.0°

Elongation: 16.3°

Diameter: 10.23"



Whether there will be any human inhabitants on planet Earth by 2123 is more problematical.





2014 October 15: Uranus and three satellites.



Uranus imaged 2014 October 15 at 20h25m UT. A 11.6 sec exposure Nikkor, 800mm f/5.6, D800 SLR ISO 2000. (Field diameter 52'.) Left click to enlarge image,

The planet, at visual magnitude 5.7, is overexposed of course. The satellites are, from north to south (top to bottom): Oberon mag. 13.9, Titania mag. 13.7 and Ariel mag. 14.2.

The Orcadian Sky Notes May 2013

Mercury, Jupiter and Venus in the May evening sky.

Commencing on May 10, 2013, a number of interesting celestial events involving three of the brightest planets, Mercury, Jupiter, Venus and the Moon will take place in the evening sky shortly after sunset.

We should say at the outset that a good, clear horizon (preferably a sea horizon) will be necessary in order to see the series of conjunctions, especially the early stages.

Diagram 1 below shows the sky on May 10 at 20h 50m UT looking a little west of NNW only 24 minutes after sunset. Binoculars will be necessary at this time in order to pick out Jupiter and Venus. It is unlikely the thin, crescent Moon (phase 0.7% elongation from the Sun 9.5, age 20h 22m) would be visible at this altitude even with binoculars. (The record for seeing a new crescent moon using optical aid stands at 11h 40m.) An hour later and Venus will have set but Jupiter should be discernable with the unaided eye.

The following fourteen days will see the Moon pass below Venus and Jupiter. Diagram 2 shows the sky looking in the same direction at 21h 30m on the 18th May. Mercury may be glimpsed with binoculars if the sky is clear. By May 26 all three planets will be within 2 degrees of one another to form a neat triangle. (See Diagram 3.)

It should be possible with good conditions to use the brilliant Venus and Jupiter as guides to locating Mercury which by this time will dropped in magnitude to –0.8, approximately twice as bights as the brilliant star Capella (above right).

Dia. 1 The sky looking a little west of  NNW on May 10 at 20h 50m UT.

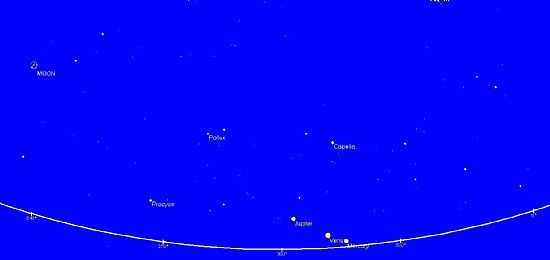

Dia. 2 The sky looking a little west of  NNW on May 18 at 21h 30m UT.

Dia. 3 The sky looking a little west of  NNW on May 26 at 21h 40m UT.
(Left click on the diagrams for enlargement.)



2013 February 08: Mercury/Mars conjunction.

One of those fortuitous occasions when the skies cleared for a few hours following many consecutive days of cloud.

2013 February 08, 17h 40m UT. Mercury in the evening twilight a little west of Trumland Farm buildings as seen from the road above the pier, Rousay. A 1/30 sec. exposure Minolta Dimage F200, ISO 400.  (Mars was too faint to show on this exposure.) Left click to enlarge.

2013 Feb. 08, 17h 36m UT: Mercury & Mars imaged 100mm achromat.45x Minolta F200, 1/20sec ISO 100

Mercury/Mars: apparent angular separation (centre to centre) 15' 36".

2013 Feb. 08, 17h 37m UT: Mercury & Mars imaged 100mm achromat.45x Minolta F200, 1/30 sec ISO 100

Mercury

Altitude:  4° 30' 13"
Azimuth: 241° 38' 6"

Magnitude: -1.0
Phase: 0.809
Phase angle: 51.8°
Elongation: 15.1°

Diameter: 5.82"

Mars

Altitude:  4° 20' 48"
Azimuth: 241° 25' 52"

Magnitude: 1.2
Phase: 0.991
Phase angle: 10.8°
Elongation: 15.2°

Diameter: 4.05"



Four Bright Planets in the Morning Sky – late November early December 2012. (For images etc please go to GALLERY page.)

Over the past several months we have been treated to a fine showing from the two brightest planets seen from Earth with both Jupiter and Venus having been observable in dark skies.

On the morning of  November 27 Venus passes south of Saturn by approximately 30 arc-minutes (about the angle subtended by the Moon as seen from Earth). Saturn will appear almost as bright as the star Procyon and substantially brighter than nearby Spica. In addition, Mercury will be visible someway to the east of Venus at magnitude 0.3 (somewhat fainter than Arcturus above). See dias. 1 & 2.

It should be possible to observe Mercury for a little over three weeks as the planet steadily increases in brightness to reach magnitude –0.5 by December 20th. During this period Venus will appear to move towards Mercury (see dia. 3). Venus will act as a very useful pointer for Mercury.

Dia. 1 Early morning sky looking SE at 06h 55m UT 2012 November 27.

Dia. 2 Early morning sky looking SE at 06h 55m UT 2012 November 27 (large scale).

Jupiter reaches maximum brilliance (mag. –2.8) at opposition on December 3rd when it crosses the southern meridian at approximately midnight. This means the planet rises (in time) close to sunset and sets close to sunrise. Thus, all four planets will be in the morning sky together, although Jupiter will of course be in the north west close to setting.

Venus, as many may have noticed, is edging ever more closely towards the south rising later in the morning by the day. From December 10th the planet will no longer rise into a dark sky, and by early next year will be lost to the unaided eye for a considerable number of months.

Next to Venus and Jupiter in order of apparent brightness come Mars and Mercury. In contrast to Jupiter and Venus the two aforementioned planets fluctuate in brightness over a wide range, particularly Mercury. Unlike Venus Mercury has no atmosphere. This means that when Mercury appears closest to the Sun in the sky at or near inferior conjunction (when in the crescent phase) its magnitude drops close to sixth magnitude. We see only a slender crescent in the telescope with no extension of the cusps. With Venus at this phase, on the other hand, the planet’s atmosphere extends light from the Sun along the cusps in a way as to encircle the apparent disc. (See Venus approaching inferior conjunction imaged 2012 June 03 15h 46m UT below .)

There is also the interesting situation when both inferior planets Mercury and Venus (orbits in relation to the Sun within that of the Earth’s), are in transit on the Sun’s disc. At a central transit no sunlight can reach the side of Mercury facing Earth. Therefore in the case of Mercury the appearance of the planet against the Sun as background is that of a perfectly black body. With Venus, as we have just described, some light is reflected and refracted along the limb and so in theory Venus is not wholly black.

So, therefore, despite both Mercy and Venus being inferior planets, their apparent brightness seen from Earth are NOT replicated. For example, Mercury is at its brightest when close to superior conjunction (phase around 100%) with the Sun, whereas Venus is at its brightest when close to greatest elongations (phases around 50%).

At certain superior conjunctions Mercury may reach a visual apparent magnitude of –2.3, or about twice as bright as Sirius, the brightest star. Of course, then being so close to the Sun in the sky, Mercury cannot be observed with the unaided eye. But those experienced in the use of the telescope in daylight may have the opportunity to observe Mercury when close to superior conjunction. I have myself observed the planet with a 85mm refractor to within 1 arc-degree of the Sun’s limb (the object glass suitably screened from direct sunlight), but this practice should never be attempted without expert supervision for fear of bringing the Sun into the field.

At its brightest on a favourable opposition Mars can equal or even exceed Jupiter in brightness, at least for a few days. But owing to Mars’s eccentric orbit, and the fact that its distance fluctuates widely owing to its position with respect to Earth, it may appear from the other side of its orbit fainter than Regulus, the faintest of the so-called first magnitude stars.

Dia 3 Early morning sky looking SE at 07h 30m UT 2012 December 11 showing the Sun, Moon and some planets in relation to the ECLIPTIC.

Early morning elongations for planets west of the Sun offer the most favourable geometry for seeing the planets in autumn to early winter. Dia 3 shows the position of the Sun in relation to Mercury Venus, Saturn and Moon on the morning of December 11 at 07h 30m UT. It will be seen all five appear near to the elliptic, with the Sun lying symmetrically upon that line which, of course, represents the apparent path of the Sun against the stellar background. The steeper the angle between the horizon and the ecliptic the more favourable the opportunity for seeing planets when close to the horizon. A similar argumnet applies (applicable to northern hemispere, reverse argumnet for the southern ehmisphere) in springtime for evening observations.



Jupiter in Taurus – a short treatise on motion.

Jupiter is by far the most prominent star-like object to be seen in the night sky for the forthcoming many weeks. The planet’s motion is currently retrograde (east to west as seen from the northern hemisphere) and will remain so until January 29, 2013 after which it will track forward again bringing it into the constellation Gemini by late June of that year.

The so-called stationary point (merely a consequence of juxtaposition, the planet does not actually halt in its orbit anymore than does our Earth!) takes place with Jupiter appearing almost halfway between the two open clusters of the Pleiades and the Hyades (bright, red star Aldebaran at is centre).

When I was finding my way around the sky as a young teenager my father would refer to this star affectionately as “All-de-bearan”.  For some reason this pronunciation seemed to suite the star and so I share this confidence now with all who read this (potentially the entire world!).

Jupiter appears to move quite rapidly against the background of stars. Currently this is around 450 arc-seconds in 24 hours, or about ten time the planet’s apparent polar diameter, in that period. We saw in the case of Uranus how few and far between were close conjunctions with comparatively bright stars. Owing the Jupiter’s more rapid movement the opportunities increase accordingly, as the diagram below may indicate.

Jupiter retrograding in Taurus 5 Nov. to 15 Dec. 2012. Stars to apparent mag. 10.0 are shown. Positions are marked at five day intervals. (Left click to enlarge.)

The comparative brightness between stars in the path of Jupiter may be judged by the size of the “dots” indicating the four major satellites (in green). Of course, one must reckon with the fact that in many instances conjunction will take place in daylight.

Were it not for their close proximity to the brilliant globe of Jupiter itself, all four satellites would be visible to the unaided eye. The smallest of binoculars will reveal the satellites.

Their visual magnitudes at an average planetary opposition (when Jupiter is at its closest to Earth for that year) are as follows:

Ganymede (III) 4.6
Io (I)  5.0
Europa (II) 5.3
Callisto  (IV) 5.6

Ganymede will therefore be seen to be nearly as bright as the sixth brightest star (Taygeta, mag. 4.28) in the Pleiades cluster.

Opposition in longitude between Jupiter and Sun in 2012.

Dec 03, 01h 44m UT
Distance 4.0689  AU
Declination +21° 20'
Magnitude: -2.8
Equatorial diameter: 48.39"
Polar diameter: 45.25"

Please go to the SKY VIEW page for a wider appreciation of Jupiter against the star background.

JCV

12/11/05







Phase anomaly for Mercury?

Many readers may be aware of the so-called phase anomaly purported to exist for the planet Venus. In clear terms what is implied is the apparent discrepancy between the observed and calculated phase for the planet Venus close to maximum elongations from the Sun. A number of papers on the subject have appeared from time to time both theoretical and practical (Brian Warner, Simon Archer and myself for example).

In 1960 I carried out a short programme of observations on Mercury using a 5.2 inch refractor at Brentwood, Essex. The results were given in a short paper reproduced here from the JBAA 1961, 71, 4.
(The notice at the foot of the article from Patrick Moore is something in the nature of a collector’s item by now!)

The apparent (estimated) phase and the calculated phase for a number of days in 1960, June.are given in the table.

This year (2012) on June 25, I carried out a similar observation from Orkney using an instrument of almost identical specification to the earlier one, namely a 132mm (5.2 inch) aperture apochromatic triplet. Moreover, from my original notes of 1960 I was able to replicate the magnifications used then, these being 250x and 300x.

The 2012 sky was of fine quality the observations continuing on and off for six hours commencing from the time of meridian passage. It is to be noted the best seeing was found in the late afternoon, this despite a lower altitude for Mercury.
My estimates for the phase varied between 45% and 50% but mostly indicating something a little less than 50%.

The data for Mercury 2012 June 25 at 14h UT was as follows:

Magnitude: 0.2
Phase: 0.502  (50.2%)
Phase angle: 89.8°
Elongation: 25.0°
Diameter: 7.28"

The data for 1961 June 17 at 14h UT was:

Magnitude: 0.2
Phase: 0.482 (48.2%)
Phase angle: 92.1°
Elongation: 24.2°
Diameter: 7.38"

John C Vetterlein
12/06/30

John C Vetterlein
12/06/30



Venus approaching inferior conjunction imaged 2012 June 03 15h 46m UT

100mm apochromatic refractor 350x: Minolta F200, 1/1000 sec. ISO100. (Left click to enlarge.)

Venus Physical Information:

Magnitude: -3.8
Phase: 0.2%
Phase angle: 174.7°
Elongation: 3.8°
Diameter: 57.60"



Mercury and Venus approaching conjunction: 2012 June 01 at 17h 01m UT.

Field view (laterally inverted): Mercury at 8’oclock and Venus at 2 o’clock. (Light, fast moving cloud background at times.) Imaged with 100mm f/9 apochromatic refractor. 1/1000 sec ISO 100 Minolta D200 digital camera through the 40mm eyepiece. Apparent angular separation 25' 20". (Left click to enlarge.)

Physical Information for Mercury

Magnitude: -1.7

Phase: 96.4%
Elongation: 6.6°
Diameter: 5.18"

Mean apparent angular movement: 5.2'/h (forward)*

Light time: 0h 10m 47.0s

Physical Information for Venus

Magnitude: -3.9

Phase: 0. 7%
Phase angle: 170.3°
Elongation: 6.9°
Diameter: 57.21"

Mean apparent angular movement: 1.6'/h (retrograde)*

Light time: 0h 2m 25.5s

* Movement against star background.


Note: To the unaided eye against a suitably darkened sky Venus would outshine Mercury by a ratio of approximately 7:1.
However the apparent surface brightness per unit area at this time is almost identical. This is a result of Mercury’s closer proximity to the Sun together with the close to vertical angle of incident sunlight. (Mercury just past superior conjunction.)

Venus, although closer to the Earth, has a low incident sunlit surface and is approaching inferior conjunction.

Owing to cloud, and despite having a sea horizon viewed from a land altitude of 135 metres O.D., it was not possible to see the two planets close to conjunction at 21h 30m (20 minutes after sunset with the planets at altitude 2°.


JCV

12/06/01



Important Addendum to Venus Transit 2012.

The two interior planets Mercury and Venus will be in close conjunction on June 01 a little over four days before the transit of Venus across the Sun’s disc.

This is a notable event in some respects. First, Mercury is on its way to becoming an evening object in our skies, though with intense twilight not many will have the opportunity of seeing the planet without optical aid from the Northern Isles (see later additions to the Notice Board).

At the time of writing (May 28 15 00 UT) Mercury, as seen from Earth, is at maximum brilliance for this planet at apparent visual magnitude –2.3. Mercury reaches greatest brilliance at and close to superior conjunction but owing to its eccentric orbit about the Sun this brightness is not always reached during these conjunctions.

[We do not encourage folk to attempt observations of any object when close to the Sun in the sky but for the very highly trained, careful observer with the appropriate equipment Mercury can offer an interesting challenge about this time. Even with quite modest telescopes Mercury may be observed close to superior conjunction. My own record stands at an elongation from the Sun’s limb of just 1.3 arc-degrees using a 85mm Wray equatorial refractor and long sun shield for the object glass. At that observation Mercury was at magnitude –2.1.]

As Venus appears to travel in towards the Sun so Mercury is travelling in the opposite direction and the two come into conjunction on June 01 at 20h 28m when the two planets will appear in the sky at a separation of a little under 12 arc-minutes.

In order to have a chance of seeing this conjunction one will require a pair of binoculars (or small telescope) together with a clean NW horizon (preferably a sea horizon). On June 1 sunset from the location of Orkney is at 21h 08.6m UT, with Venus setting at 21h 54.7m UT and Mercury (appearing a little above Venus) at 21h 58.3m UT.

Even with the Sun below the horizon some 20 minutes it should be possible to locate Venus low down close to the horizon altitude 1° 55' and azimuth 318° 22' . This IS feasible; it requires only careful planning, a good sky and a sense of urgency. If nothing else, the Earth’s rapid rotation brings home to us a sense of our mortality!

JCV

12/05/28



VENUS 2012 May

Venus in white light and poor seeing 2012 May 09, 15h 02m UT. 120mm apochromatic refractor 220x Minolta Dimage F200, 1/500 sec ISO 100. Apparent diameter 43.03". phase 19% apparent visual magnitude –4.5.







Click for Map
sitemap | cookie policy | privacy policy
