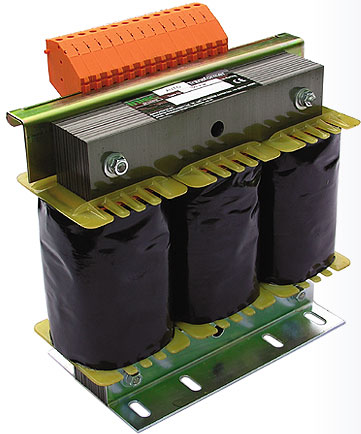

Auto transformer





part no. rating dimensions weight
  Kw A(w) B(d) C(h) D E approx
AT1 15.0 240 120 220 170 80 18
AT2 18.5 240 130 220 170 90 20
AT3 22.0 240 140 220 170 100 28
AT4 30.0 300 150 300 220 100 45
AT5 37.0 300 150 300 220 110 52
AT6 45.0 300 160 300 220 120 55
AT7 55.0 300 170 300 220 130 65
AT8 75.0 360 200 360 320 100 90
AT9 90.0 360 210 360 320 100 95
AT10 110.0 360 230 360 320 130 105
AT11 132.0 360 240 360 320 140 120
AT12 160.0 360 270 360 320 150 130
AT13 200.0 420 240 420 380 130 160
AT14 260.0 420 260 420 380 150 190
AT15 300.0 480 300 500 440 180 230
AT16 340.0 480 315 500 440 195 250
AT17 400.0 480 330 500 440 210 280
AT18 450.0 600 300 600 540 180 320
AT19 550.0 600 320 600 540 200 340
